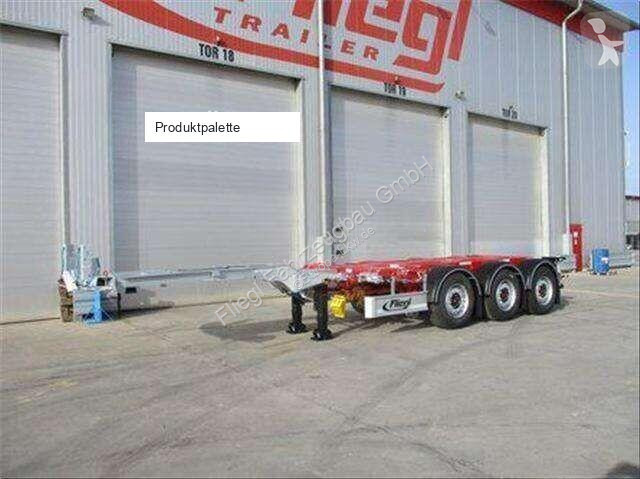

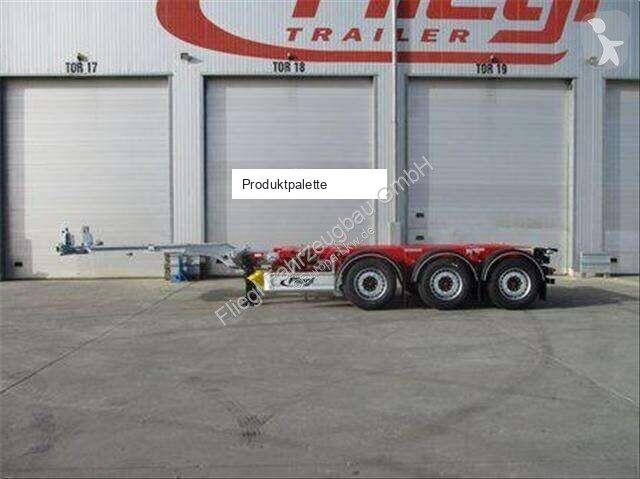

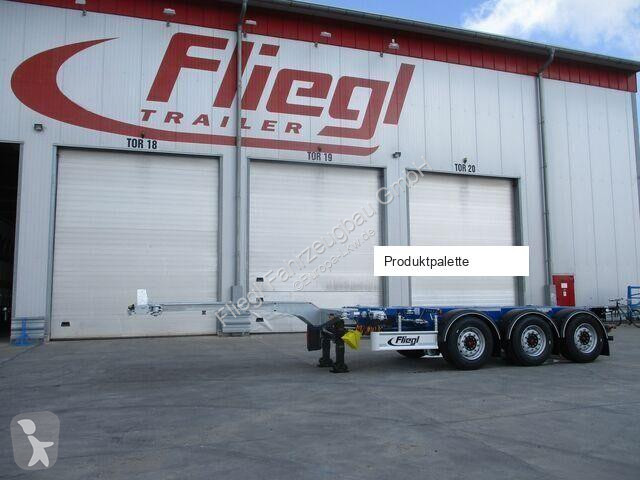

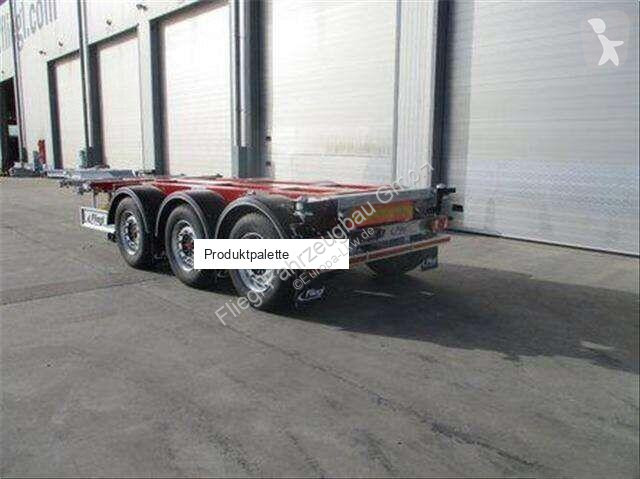

Semirremolque portacontenedores Fliegl Vario SDS 380 V1 nuevo

07819 Triptis
Fliegl

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509252
Carrocería	Portacontenedores
Marca	Fliegl
Gama (marca : Fliegl)	Vario
Modelo	SDS 380 V1
Estado	Nuevo
Año	-
Fecha 1ª matriculación
País	ALEMANIA
Constructor	Fliegl

Caja de cambios y transmisión
Precisiones caja de cambios	Boîte automatique

Neumáticos
Estado y dimensiones de los neumáticos	100 %

Equipamiento Semirremolque Fliegl
Suspensión Neumática EBS

Comentarios
Localisation : • Allemagne Triptis Description: Semi-trailer containerchassis Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Note: The trailer may only be towed by tractor units that guarantee the effectiveness of the ABS! 24 Volt, multi-chamber lights, tail and brake lights in LED, yellow LED lighting on the sides (Note: certain tractor units may experience false diagnoses, even though the function is correct) Achsenkonfiguration: 3 axles Customized Transport Solution Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are carried out individually according to customer specifications Chassis Saddle and Container Fine-grain steel welded construction saddle plate with 2 replaceable kingpins and 2 kingpin positions Container receptacles Rear extension retracted 1 x 20 ft or 1 x 30 ft flush at the rear Middle telescope 1st stage rear extension extended 1st stage 2 x 20 ft or 1 x 40 ft with and without gooseneck tunnel Middle telescope 2nd stage rear extension extended 2nd stage 1 x 45 ft with and without gooseneck tunnel and with rear overload capability Middle telescope as a nested central tube frame with pin locking with height adjustment at the rear and foldable center supports for containers without a tunnel Container guides front pluggable and removable Plug-in adapter for front locking to lock containers without a tunnel from below with a holder when not in use Rear extension mounted on rollers with hand crank 24 tons 2-speed support jacks single-sided operation Rear underrun protection extendable for 45 ft containers Half-shell fenders with anti-splash flaps according to EG Rear impact protection Axles + Suspension SAF disc brake axles with 430 mm disc diameter Axle/suspension laser-aligned to reduce tire wear and fuel consumption Axle spacing offset mm (combined transport) up to 44 tons gross vehicle weight Braking System 2-line compressed air braking system Color-coded line routing for easy service Spring-loaded parking brake Tele Control Axle load adjustment for easy telescoping 2 fail-safe coupling heads at the front without connecting line Electronic Braking System with EBS socket at the front without connecting cable with raise and lower valve Vehicle - Driving Stability System Axle load detection via EBS-CAN bus signal for display on the instrument panel in the driver''s cab the truck must be prepared accordingly no truck installation (no calibrated scale) Wheels and Tires 385/55 R22.5 manufacturer''s choice Steel rims factory silver Nwodavxlsi Ri Exj Nqek Electrical System 2 white position lights at the front 2 white/red side marker lights at the rear 2 x 7-pole fail-safe sockets at the front without connecting cable Operating Instructions Note: Transport of filled tank containers is not permitted! When transporting 45 ft containers with a short tunnel with or without a front extension Country of Registration/ Signs Germany Type approval according to EG 2007/46 24/7 service hotline prepared for license plate holder single-line Warning sign according to ECE - 70 Contour marking with reflective strips according to ECE R 048 white on the sides and red at the rear Paint Frame front section + rear extension hot-dip galvanized Rear section DB 7350 Novagrau - 10-year guarantee against rust-through or hot-dip galvanized - 15-year
Ver todo

Comentarios

Localisation :
• Allemagne Triptis

Description: Semi-trailer containerchassis
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Note: The trailer may only be towed by tractor units that guarantee the effectiveness of the ABS!
24 Volt, multi-chamber lights, tail and brake lights in LED, yellow LED lighting on the sides (Note: certain tractor units may experience false diagnoses, even though the function is correct)
Achsenkonfiguration: 3 axles
Customized Transport Solution
Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are carried out individually according to customer specifications
Chassis
Saddle
and Container

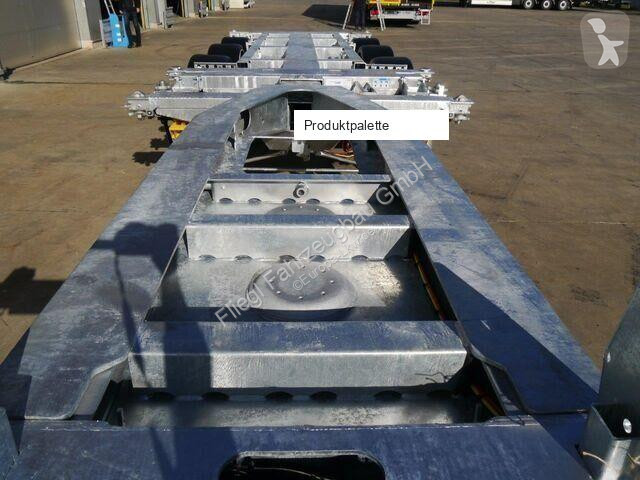

Fine-grain steel welded construction
saddle plate with 2 replaceable kingpins and 2 kingpin positions
Container receptacles
Rear extension retracted
1 x 20 ft or 1 x 30 ft
flush at the rear
Middle telescope
1st stage
rear extension extended
1st stage
2 x 20 ft or 1 x 40 ft with and without gooseneck tunnel
Middle telescope
2nd stage
rear extension extended
2nd stage
1 x 45 ft with and without gooseneck tunnel
and with rear overload capability
Middle telescope as a nested central tube frame with pin locking
with height adjustment at the rear and foldable center supports for containers without a tunnel

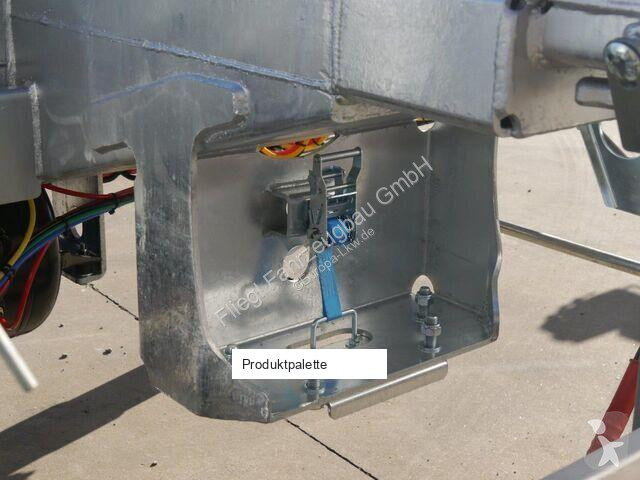

Container guides
front
pluggable and removable

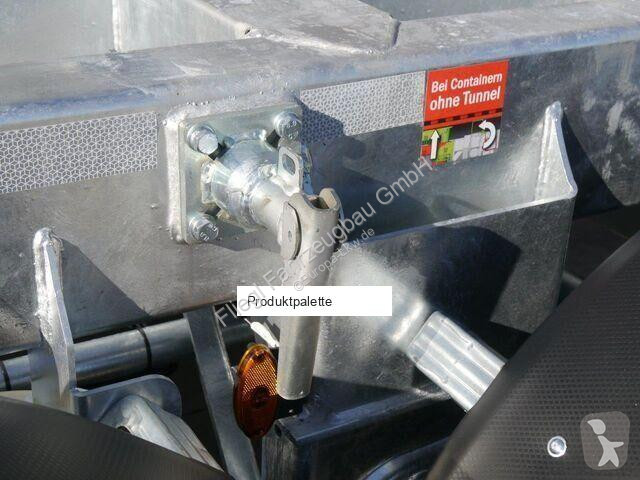

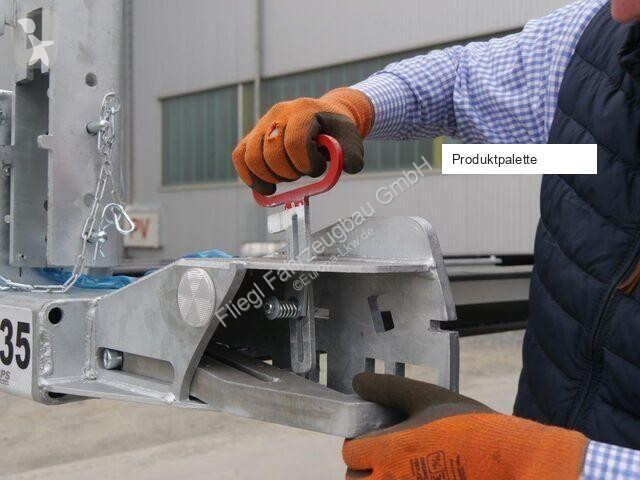

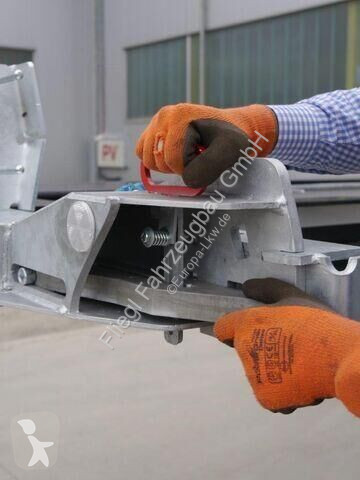

Plug-in adapter for front locking
to lock containers without a tunnel from below
with a holder when not in use

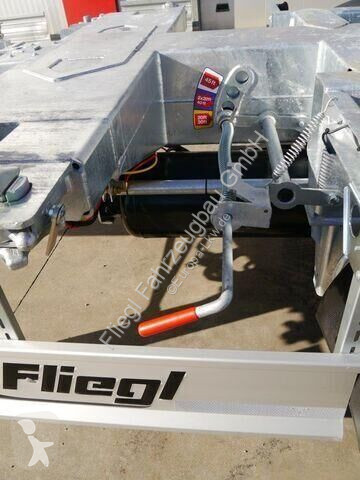

Rear extension mounted on rollers
with hand crank
24 tons
2-speed support jacks
single-sided operation
Rear underrun protection
extendable for 45 ft containers
Half-shell fenders
with anti-splash flaps according to EG
Rear impact protection
Axles + Suspension
SAF disc brake axles with 430 mm disc diameter
Axle/suspension laser-aligned to reduce tire wear and fuel consumption
Axle spacing offset mm (combined transport) up to 44 tons gross vehicle weight
Braking System
2-line compressed air braking system
Color-coded line routing for easy service
Spring-loaded parking brake

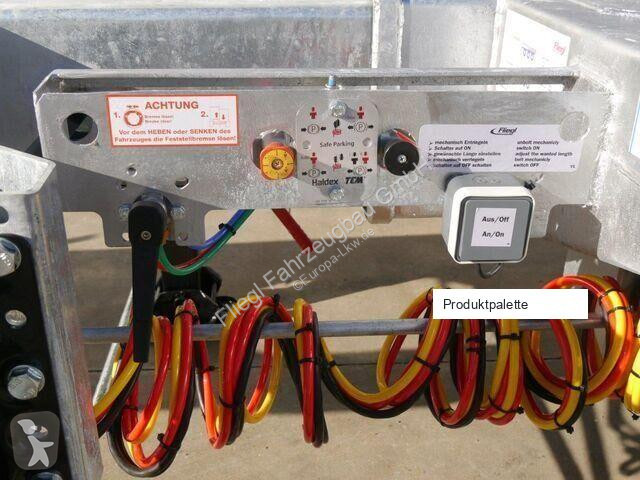

Tele Control
Axle load adjustment for easy telescoping
2 fail-safe coupling heads at the front
without connecting line
Electronic Braking System with EBS socket at the front
without connecting cable
with raise and lower valve
Vehicle - Driving Stability System
Axle load detection via EBS-CAN bus signal
for display on the instrument panel in the driver''s cab
the truck must be prepared accordingly
no truck installation (no calibrated scale)
Wheels and Tires
385/55 R22.5
manufacturer''s choice
Steel rims
factory silver
Nwodavxlsi Ri Exj Nqek
Electrical System
2 white position lights at the front
2 white/red side marker lights at the rear
2 x 7-pole fail-safe sockets at the front
without connecting cable
Operating Instructions
Note: Transport of filled tank containers is not permitted!
When transporting 45 ft containers with a short tunnel
with or without a front extension
Country of Registration/ Signs
Germany
Type approval according to EG 2007/46
24/7 service hotline
prepared for license plate holder
single-line
Warning sign according to ECE - 70
Contour marking with reflective strips according to ECE R 048
white on the sides and red at the rear
Paint
Frame
front section + rear extension
hot-dip galvanized
Rear section DB 7350 Novagrau - 10-year guarantee against rust-through
or
hot-dip galvanized - 15-year

Ver todo
