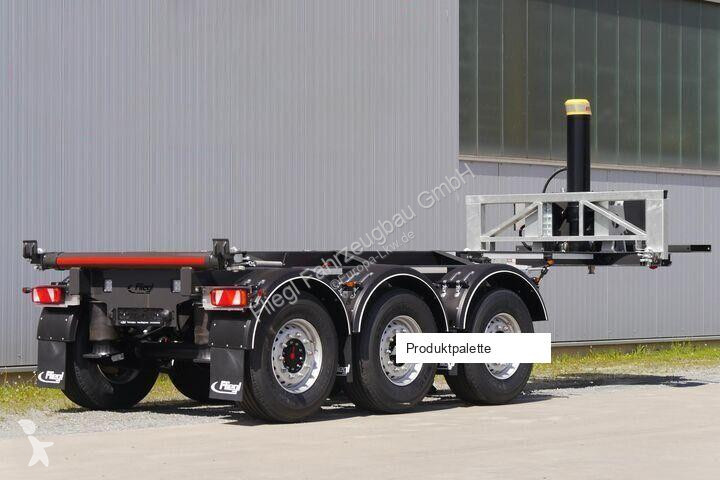

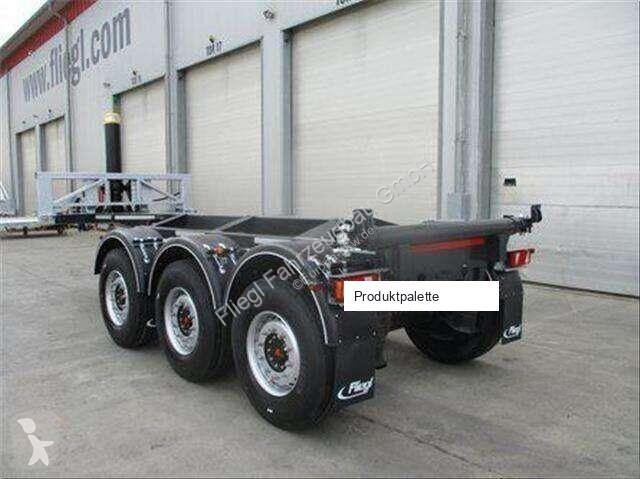

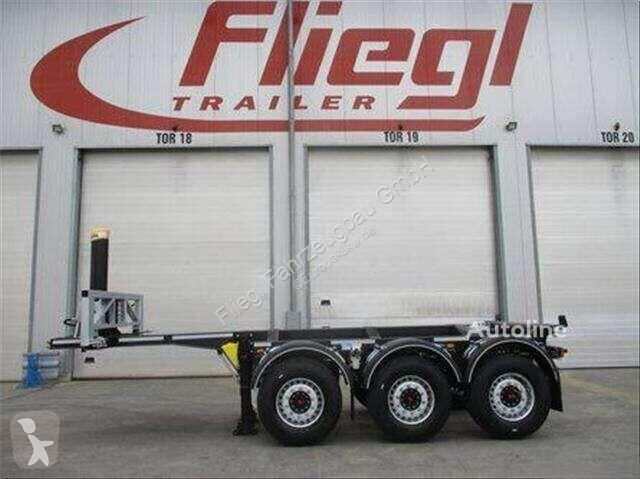

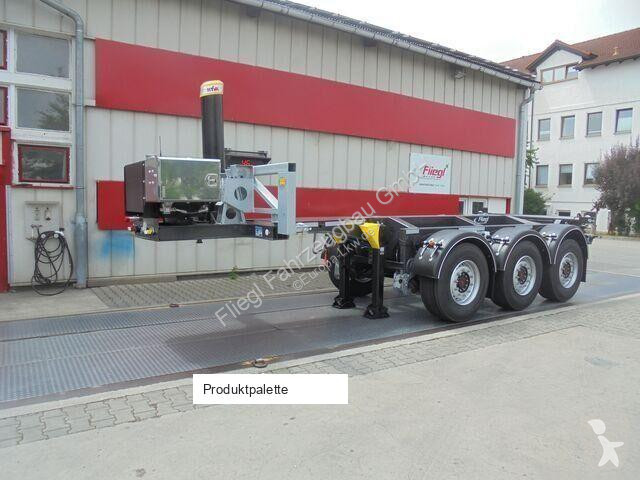

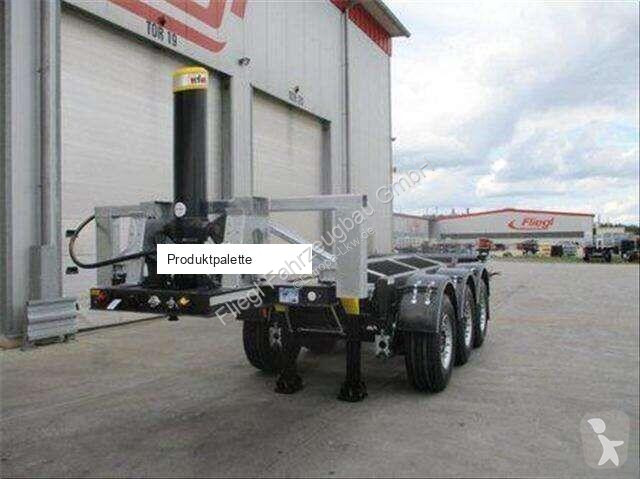

Contenedor Fliegl SDS 380 Kippchassis für 1x 20 nueva

-
Fliegl
07819 Triptis

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509019
Tipo	Carrocería
Bajo carrocería	Contenedor
Marca	Fliegl
Modelo	SDS 380 Kippchassis für 1x 20
Estado	Nuevo
Año	-
País	ALEMANIA
Constructor	Fliegl

Comentarios
Localisation : • Allemagne Triptis Description: Semi-trailer containerchassis Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Locking cross members, double-mounted for securing 1 x 20-foot container (Note: low fifth-wheel load for 20-foot containers) Caution: The trailer may only be towed by tractor units that ensure the effectiveness of the ABS! Frame: colour of choice Support feet: Black coated Note: Archive images! Achsenkonfiguration: 3 axles Customized Transport Solution Configure your Fliegl vehicle to meet your specific requirements. The vehicle shown is an example. Production and equipment are customized according to customer specifications Semi-Trailer Container Chassis Fine-grained steel welded construction semi-trailer plate with replaceable 2 kingpins and 2 kingpin positions Front locking mechanism on tipper ram mounting block with guide wedges on both sides rear locking mechanism on continuous rotary shaft with spring return Without subframe for self-supporting containers Container mounts 24 metric tons 2-speed support jack single-sided operation with straight lower section without thrust compensation Clear support foot corner dimension or clear rear swing radius approx. 1850 mm 2 wheel chocks with holders Half-shell fenders with anti-spray flaps per EC standards Low-pressure cylinder max. 170 bar smallest stage hard-chromed with HDK Screw coupling fixed part nominal diameter 48 mm (without hose connection) Hydraulic operation via truck auxiliary power unit Hydraulic connection with hose and HDK screw plug nominal diameter = 48 mm with knurled nut Axles + Suspension 3 SAF disc brake axles with 430 mm disc diameter Laser-measured axles/chassis to reduce tire wear and fuel consumption Offset wheelbase mm (combined transport) up to 44to Gross train weight Nwsdasi Ri Eusvxl Nqsk Brake System 2-line compressed air brake system Color-coded lines for easy servicing Spring-loaded parking brake 2 non-reversible coupling heads at the front without connecting line Electronic Brake System with EBS socket at the front without connecting cable With lift & lower valve Vehicle stability control system Axle load detection via EBS CAN bus signal for display in the cab the truck must be equipped accordingly no truck installation required (no calibrated scale) Wheels and Tires 6 385/65 R22.5 (manufacturer’s choice) 6 steel rims factory silver Electrical System 24 volts multi-chamber lights yellow LED side lighting 2 white front position lights 2 white/red rear lane-keeping lights 2 x 7-pin reverse-proof sockets in front without connecting cables Country of Registration/License Plates Germany With DEKRA approval and inspection report (in accordance with §13 EG - FGV) 24/7 Service Hotline Prepared for single-line license plate holder Contour markings with reflective strips per ECE R 048 white on the sides and red at the rear Paint finish 10-year warranty against rust-through
Ver todo

Comentarios

Localisation :
• Allemagne Triptis

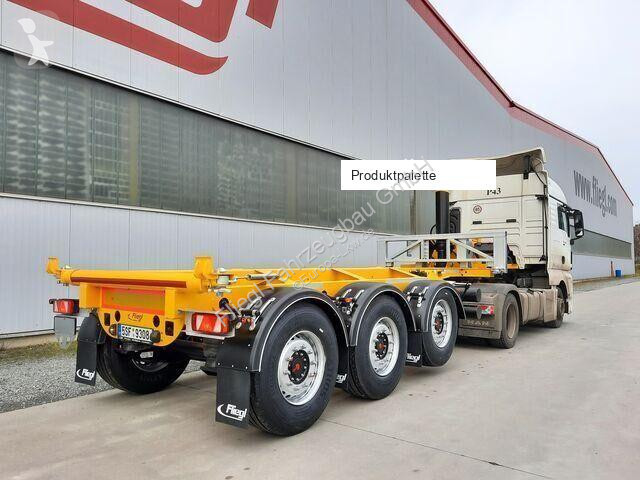

Description: Semi-trailer containerchassis
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland

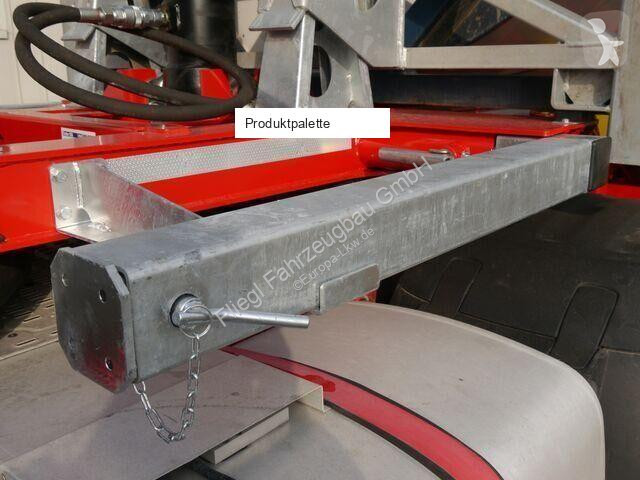

Locking cross members, double-mounted for securing 1 x 20-foot container (Note: low fifth-wheel load for 20-foot containers)
Caution: The trailer may only be towed by tractor units that ensure the effectiveness of the ABS!
Frame: colour of choice
Support feet: Black coated
Note: Archive images!
Achsenkonfiguration: 3 axles
Customized Transport Solution
Configure your Fliegl vehicle to meet your specific requirements. The vehicle shown is an example. Production and equipment are customized according to customer specifications

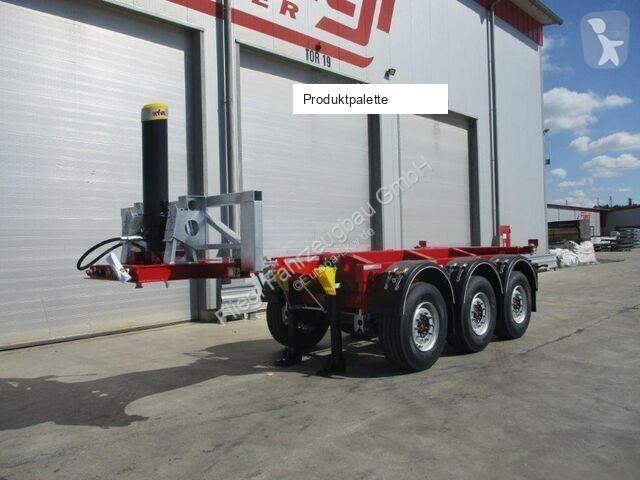

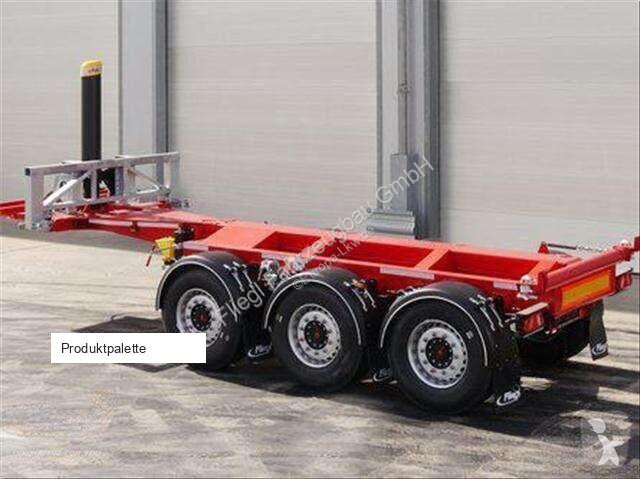

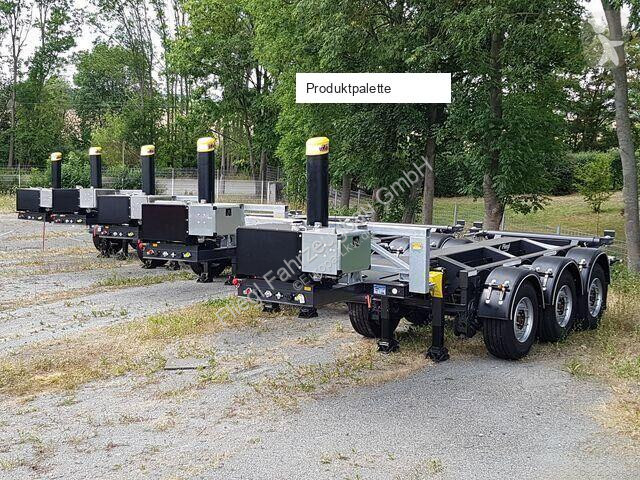

Semi-Trailer Container Chassis
Fine-grained steel welded construction
semi-trailer plate with replaceable 2 kingpins and 2 kingpin positions

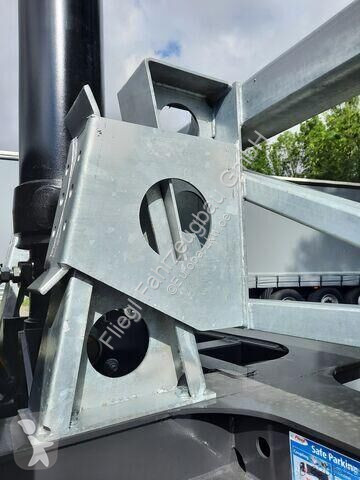

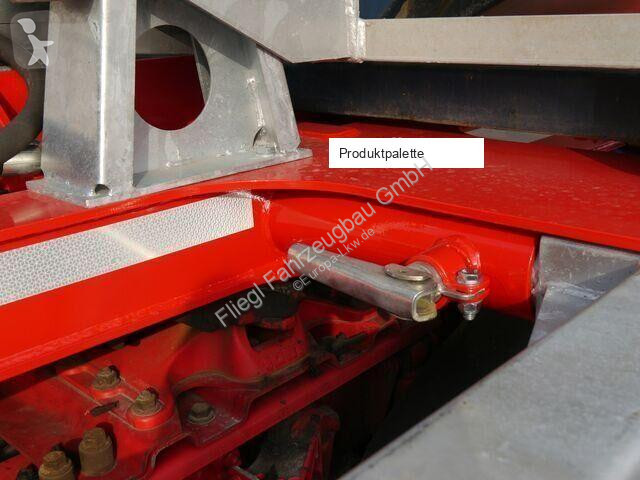

Front locking mechanism on tipper ram mounting block with guide wedges on both sides

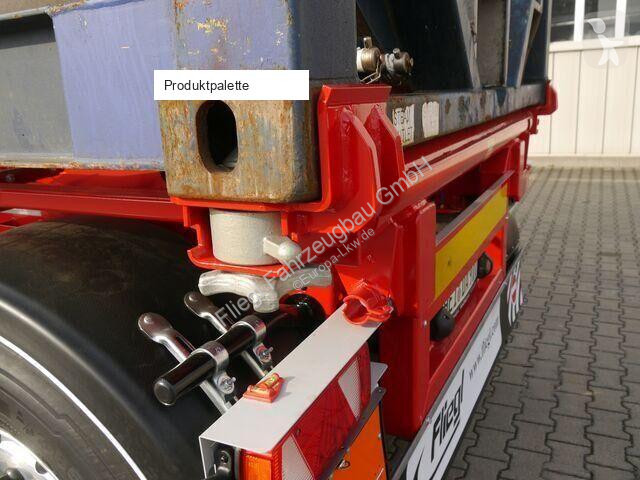

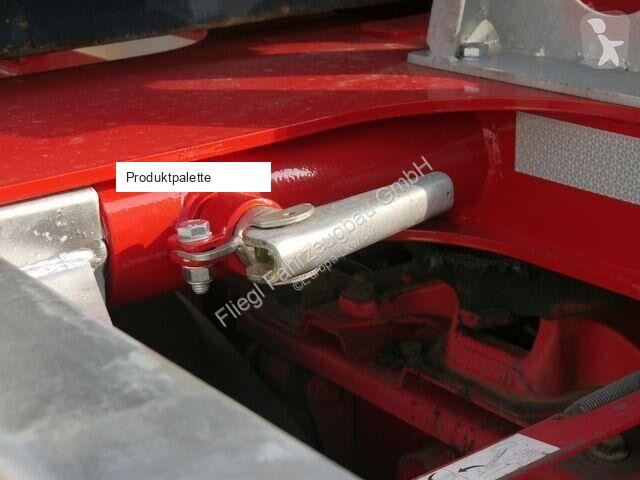

rear locking mechanism on continuous rotary shaft with spring return
Without subframe for self-supporting containers
Container mounts
24 metric tons
2-speed support jack
single-sided operation
with straight lower section
without thrust compensation
Clear support foot corner dimension or clear rear swing radius approx. 1850 mm
2 wheel chocks with holders

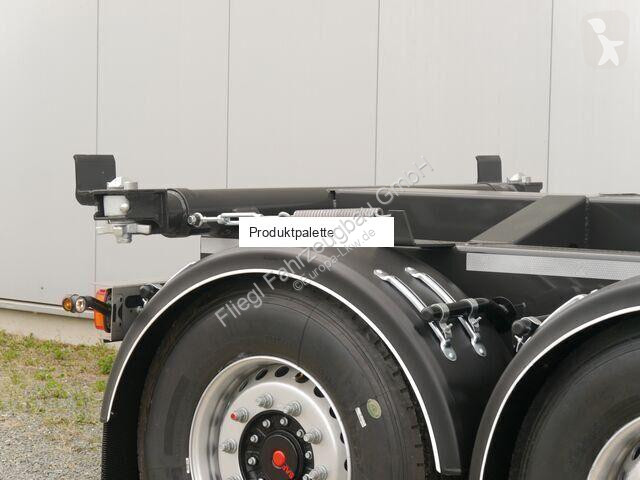

Half-shell fenders
with anti-spray flaps per EC standards

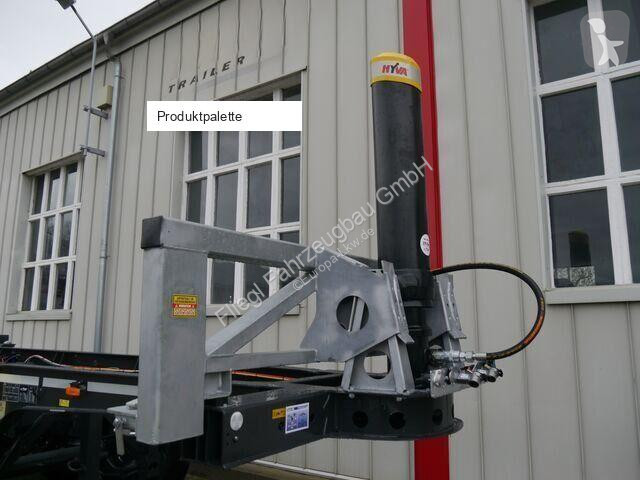

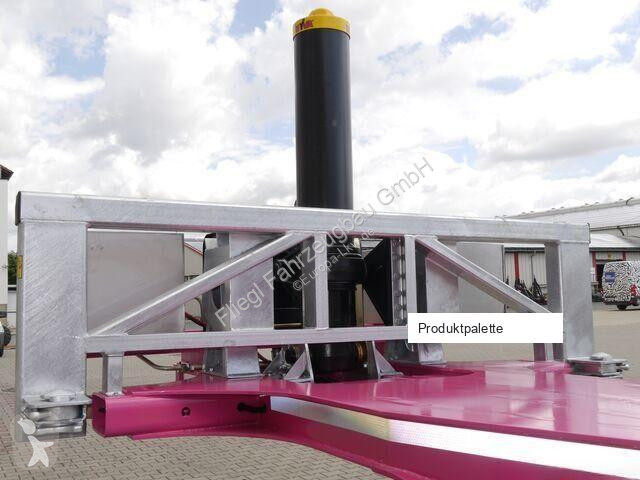

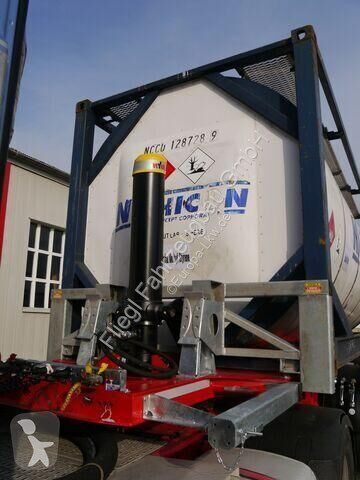

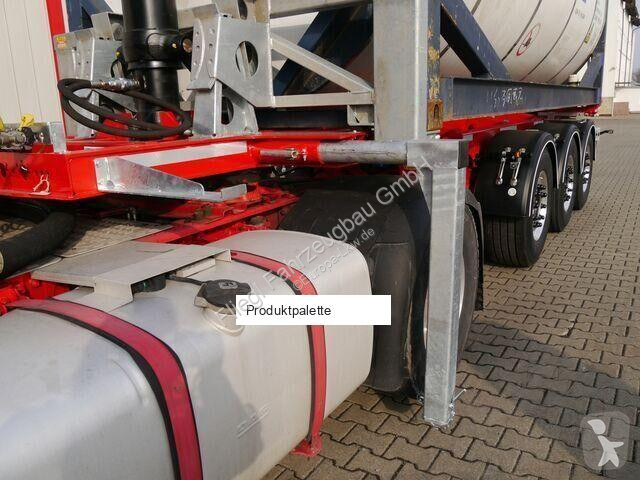

Low-pressure cylinder
max. 170 bar
smallest stage hard-chromed
with HDK
Screw coupling
fixed part
nominal diameter 48 mm
(without hose connection)
Hydraulic operation via truck auxiliary power unit
Hydraulic connection with hose and HDK screw plug
nominal diameter = 48 mm
with knurled nut
Axles + Suspension
3 SAF disc brake axles with 430 mm disc diameter
Laser-measured axles/chassis to reduce tire wear and fuel consumption
Offset wheelbase mm (combined transport) up to 44to
Gross train weight
Nwsdasi Ri Eusvxl Nqsk
Brake System
2-line compressed air brake system
Color-coded lines for easy servicing
Spring-loaded parking brake
2 non-reversible coupling heads at the front
without connecting line
Electronic Brake System with EBS socket at the front
without connecting cable
With lift & lower valve
Vehicle stability control system
Axle load detection via EBS CAN bus signal
for display in the cab
the truck must be equipped accordingly
no truck installation required (no
calibrated scale)
Wheels and Tires
6 385/65 R22.5 (manufacturer’s choice)
6 steel rims
factory silver

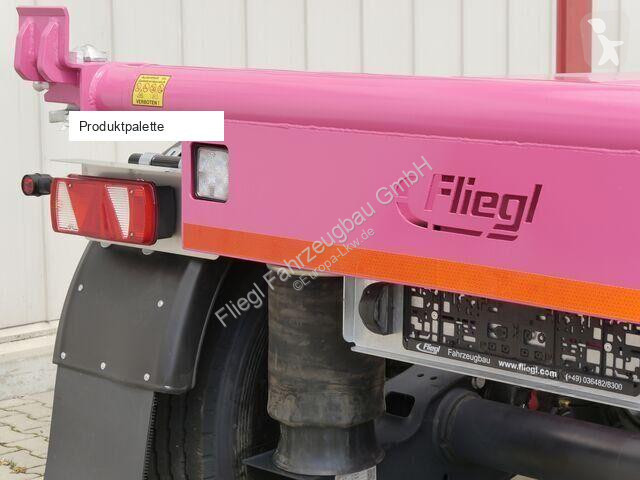

Electrical System
24 volts
multi-chamber lights
yellow LED side lighting
2 white front position lights
2 white/red rear lane-keeping lights

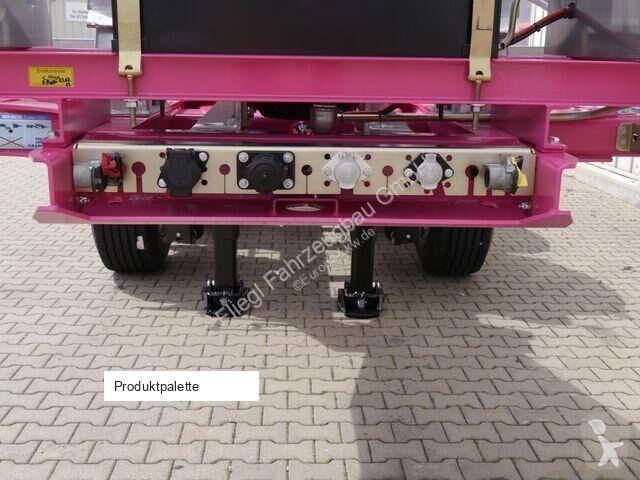

2 x 7-pin reverse-proof sockets in front
without connecting cables
Country of Registration/License Plates
Germany
With DEKRA approval and inspection report (in accordance with §13 EG - FGV)
24/7 Service Hotline
Prepared for single-line license plate holder
Contour markings with reflective strips per ECE R 048
white on the sides and red at the rear
Paint finish
10-year warranty against rust-through

Ver todo

Comentarios
Localisation : • Allemagne Triptis Description: Semi-trailer containerchassis Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Locking cross members, double-mounted for securing 1 x 20-foot container (Note: low fifth-wheel load for 20-foot containers) Caution: The trailer may only be towed by tractor units that ensure the effectiveness of the ABS! Frame: colour of choice Support feet: Black coated Note: Archive images! Achsenkonfiguration: 3 axles Customized Transport Solution Configure your Fliegl vehicle to meet your specific requirements. The vehicle shown is an example. Production and equipment are customized according to customer specifications Semi-Trailer Container Chassis Fine-grained steel welded construction semi-trailer plate with replaceable 2 kingpins and 2 kingpin positions Front locking mechanism on tipper ram mounting block with guide wedges on both sides rear locking mechanism on continuous rotary shaft with spring return Without subframe for self-supporting containers Container mounts 24 metric tons 2-speed support jack single-sided operation with straight lower section without thrust compensation Clear support foot corner dimension or clear rear swing radius approx. 1850 mm 2 wheel chocks with holders Half-shell fenders with anti-spray flaps per EC standards Low-pressure cylinder max. 170 bar smallest stage hard-chromed with HDK Screw coupling fixed part nominal diameter 48 mm (without hose connection) Hydraulic operation via truck auxiliary power unit Hydraulic connection with hose and HDK screw plug nominal diameter = 48 mm with knurled nut Axles + Suspension 3 SAF disc brake axles with 430 mm disc diameter Laser-measured axles/chassis to reduce tire wear and fuel consumption Offset wheelbase mm (combined transport) up to 44to Gross train weight Nwsdasi Ri Eusvxl Nqsk Brake System 2-line compressed air brake system Color-coded lines for easy servicing Spring-loaded parking brake 2 non-reversible coupling heads at the front without connecting line Electronic Brake System with EBS socket at the front without connecting cable With lift & lower valve Vehicle stability control system Axle load detection via EBS CAN bus signal for display in the cab the truck must be equipped accordingly no truck installation required (no calibrated scale) Wheels and Tires 6 385/65 R22.5 (manufacturer’s choice) 6 steel rims factory silver Electrical System 24 volts multi-chamber lights yellow LED side lighting 2 white front position lights 2 white/red rear lane-keeping lights 2 x 7-pin reverse-proof sockets in front without connecting cables Country of Registration/License Plates Germany With DEKRA approval and inspection report (in accordance with §13 EG - FGV) 24/7 Service Hotline Prepared for single-line license plate holder Contour markings with reflective strips per ECE R 048 white on the sides and red at the rear Paint finish 10-year warranty against rust-through

Comentarios

Tarifa de venta

Precio bajo pedido
